Introduction

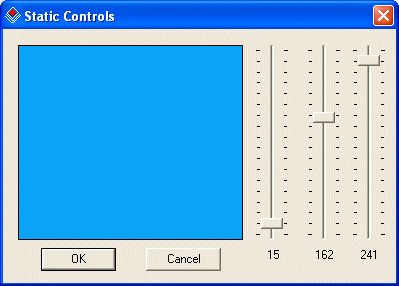

In this exercise, we will use track bars to change the color of a static control.

Prerequisites:

• Dialog Boxes
• Colors
• Static Text Control
• Slider Control
• Timer

There are various types of objects you can use to preview a color. The static control is convenient because it provides a ready made rectangle although you still have to configure it because it is not natively equip to handle the change of colors. To do this, you can consider it simply as a platform with a client area. When painting this control, you mostly use the properties of the CWnd class. For this reason, you could as well use a list box, a tree view, or a list view, etc.

To allow the user to set the variances of a color, you can use sliders, scroll bars, or spin buttons, etc. In this exercise, we will use the sliders simply because we decide to use them. They don't necessarily provide more or less functionality than scroll bars or spin buttons.

Giving live and necessary feedback to the user is one of the greatest assets of a friendly application. On this application, we will use static text controls to show the red, green, and blue values of a color.

Creating the Application

The simplest static control is considered a label. It consists of a simple object that displays text. The user cannot directly change this text unless you programmatically allow it. This form of the static control is the simplest control you can use in an MFC application.

To add a simple label to a dialog box, you can click the Static Text button on the Controls toolbar and click on the dialog box. The only thing you need to do is to change the Caption property on the Properties window.

If you cannot add a label to the dialog box when designing it, you can programmatically create one. This is done using the CStatic class and calling the Create() method.

By default, you cannot change the properties of a static control unless you state this explicitly. This can be done in various ways. For example you can declare a CString variable, set its value using the Format method, then call the SetDlgItemText() function and change the text of the static control using its identifier.





Practical Learning: Starting the Exercise

1. Start Microsoft Visual C++
2. Create a new project named ColorChanger1
3. Create the project as a Dialog Based and set the Dialog Title as Color Changer

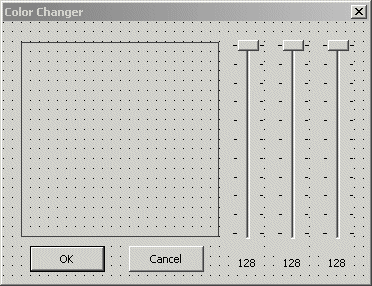

4. Design the dialog box as follows:
     Control ID Caption Additional Properties Picture Control IDC_PREVIEWAREA      Slider Control IDC_RED_TRACK   Auto Ticks: True Orientation: Vertical Tick Marks: True Slider Control IDC_GREEN_TRACK   Auto Ticks: True Orientation: Vertical Tick Marks: True Slider Control IDC_BLUE_TRACK   Auto Ticks: True Orientation: Vertical Tick Marks: True Static Text IDC_RED_VALUE 128 Align Text: Center Static Text IDC_GREEN_VALUE 128 Align Text: Center Static Text IDC_BLUE_VALUE 128 Align Text: Center
5. Using either the ClassWizard or the Add Member Variable Wizard, add the following member variables to the controls (the Static Text controls are created/declared as CString variables):
     Identifier Value Variable Control Variable IDC_PREVIEWAREA   m_PreviewArea IDC_RED_TRACK   m_RedTrack IDC_GREEN_TRACK   m_GreenTrack IDC_BLUE_TRACK   m_BlueTrack IDC_RED_VALUE m_RedValue   IDC_GREEN_VALUE m_GreenValue   IDC_BLUE_VALUE m_BlueValue
6. In the header file of the dialog, declare a private COLORREF variable as follows:


   private:

   	COLORREF brColor;

   };

7. Initialize the colors and variable in the OnInitDialog() event of the dialog box as follows:


   BOOL CColorChanger1Dlg::OnInitDialog()

   {

   	CDialog::OnInitDialog();



   	// Set the icon for this dialog.  The framework does this automatically

   	//  when the application's main window is not a dialog

   	SetIcon(m_hIcon, TRUE);			// Set big icon

   	SetIcon(m_hIcon, FALSE);		// Set small icon



   	// TODO: Add extra initialization here

   	m_RedTrack.SetRange(0, 255);

   	m_RedTrack.SetTicFreq(15);

   	m_RedTrack.SetPos(128);



   	m_GreenTrack.SetRange(0, 255);

   	m_GreenTrack.SetTicFreq(15);

   	m_GreenTrack.SetPos(128);



   	m_BlueTrack.SetRange(0, 255);

   	m_BlueTrack.SetTicFreq(15);

   	m_BlueTrack.SetPos(128);



   	brColor = RGB(128, 128, 128);



   	SetTimer(0x124, 20, NULL);



   	return TRUE;  // return TRUE  unless you set the focus to a control

   }

8. When the user changes the value of one of the sliders, we will retrieve its value, combine it with the values of the other two sliders, create a color from these values and apply it to the picture control. To implement this, initiate the OnTimer() event of the dialog and implement it as follows:


   void CColorChanger1Dlg::OnTimer(UINT nIDEvent)

   {

   	// TODO: Add your message handler code here and/or call default

   	CClientDC dc(this);



   	// This is the rectangle that includes the big Static rectangle

   	CRect Recto;



   	// Store the dimensions of the Static control in the Recto object

   	m_PreviewArea.GetWindowRect(&Recto);

   	ScreenToClient(&Recto);



   	// Create a brush that will be used to paint the Static

   	CBrush BrushColor(brColor);

   	// Select the brush

   	CBrush *pBrush = dc.SelectObject(&BrushColor);



   	// Draw the background of the Static object

   	dc.Rectangle(&Recto);



   	// Give the brush back to the device context

   	dc.SelectObject(pBrush);

   	CDialog::OnTimer(nIDEvent);

   }

9. Initiate the WM_VSCROLL message for the dialog and implement its OnVScroll() event as follows:


   void CColorChanger1Dlg::OnVScroll(UINT nSBCode, UINT nPos, CScrollBar* pScrollBar)

   {

   	// TODO: Add your message handler code here and/or call default

   	UpdateData();

   	// The actual value is the position of the slider CSliderCtrl::GetPos()

   	// We subtract it from 255 because of the orientation of the slider

   	// and the navigation of the thumb box

   	int nRed   = 255 - m_RedTrack.GetPos();

   	int nGreen = 255 - m_GreenTrack.GetPos();

   	int nBlue  = 255 - m_BlueTrack.GetPos();



   	CString PosRed, PosGreen, PosBlue;



   	m_RedValue.Format("%d", nRed);

   	m_GreenValue.Format("%d", nGreen);

   	m_BlueValue.Format("%d", nBlue);



   	CRect Recto;

   	brColor = RGB(nRed, nGreen, nBlue);



   	m_PreviewArea.GetWindowRect(&Recto);

   	ScreenToClient(&Recto);



   	UpdateData(FALSE);

   	CDialog::OnVScroll(nSBCode, nPos, pScrollBar);

   }

10. Test the application
11. After using it, close it and return to your programming environment.
